Work Positioning System
SB FALL PROTECTION has a comprehensive and customized series of Work Positioning System. Work Positioning Lanyards can be connected to the Lateral D-Rings on the Work Positioning Belts or Combination Harnesses and easily adjusted for their lengths to suit the application.
- All Work Positioning Lanyards and Belts are tested and CE certified as per EN 358:2018.
- Breaking Strength min 15 kN.

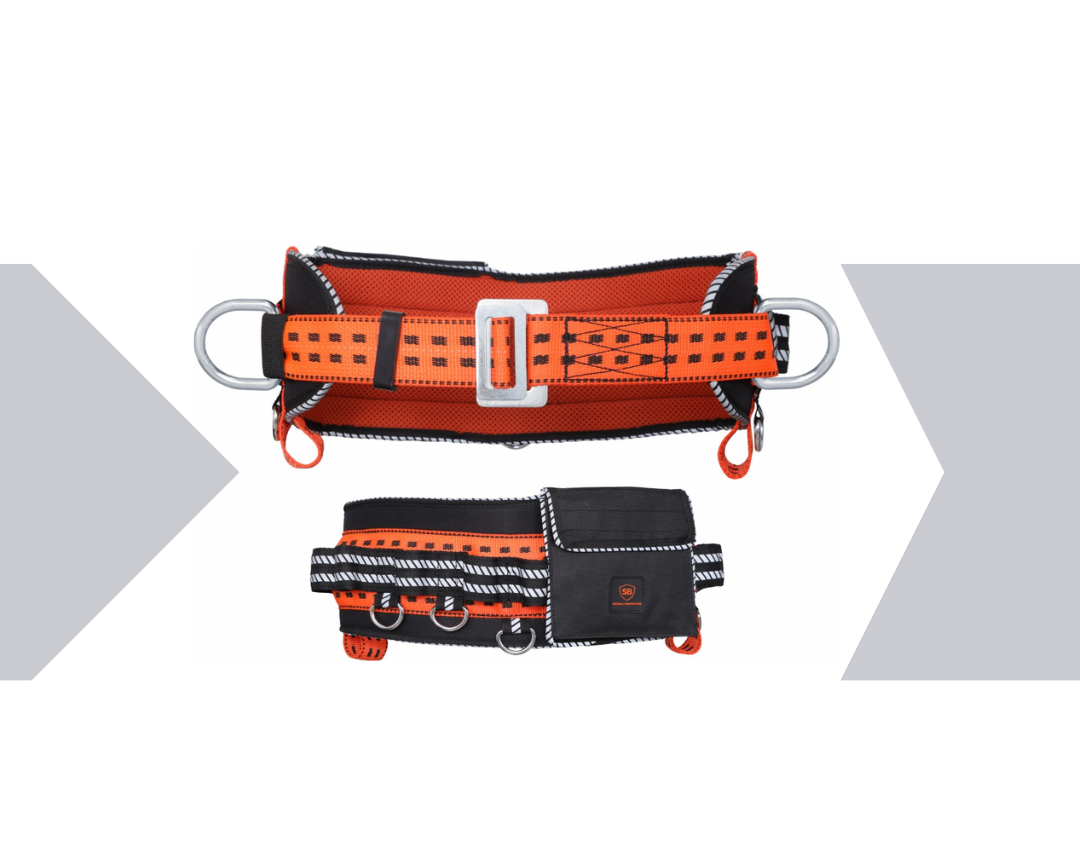

SBH101WPB

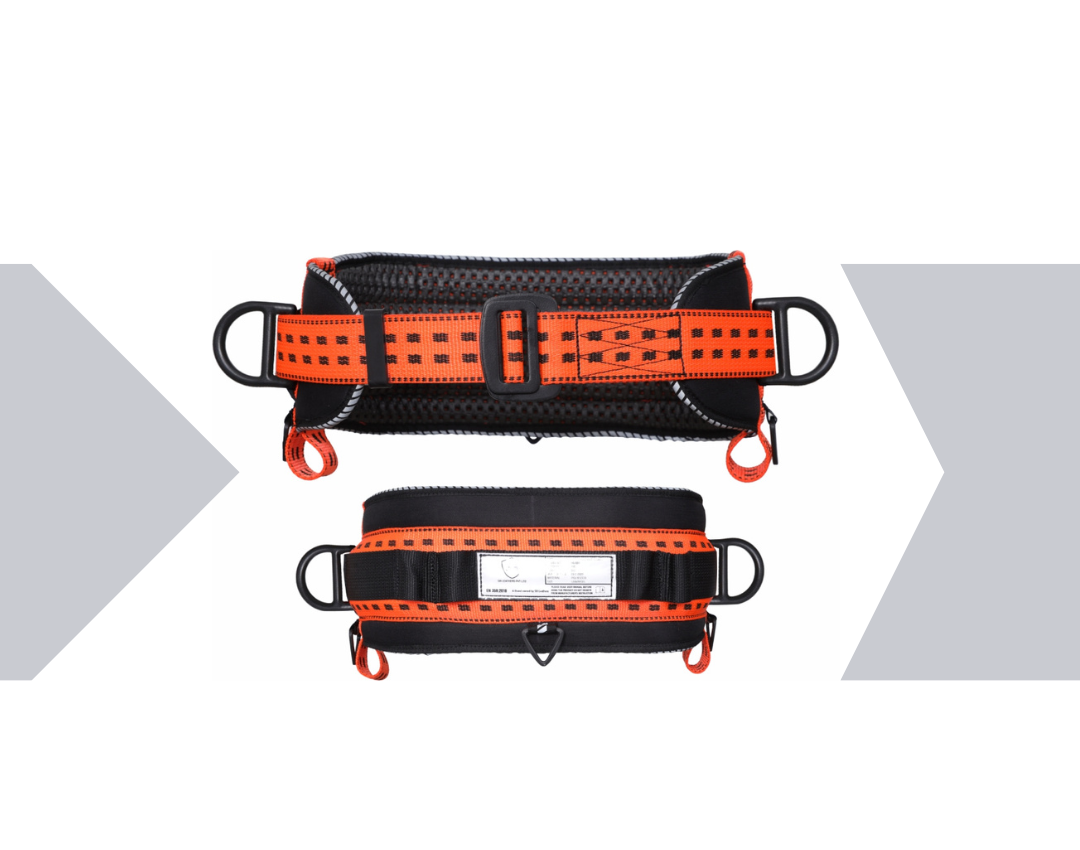

SBH102WPB

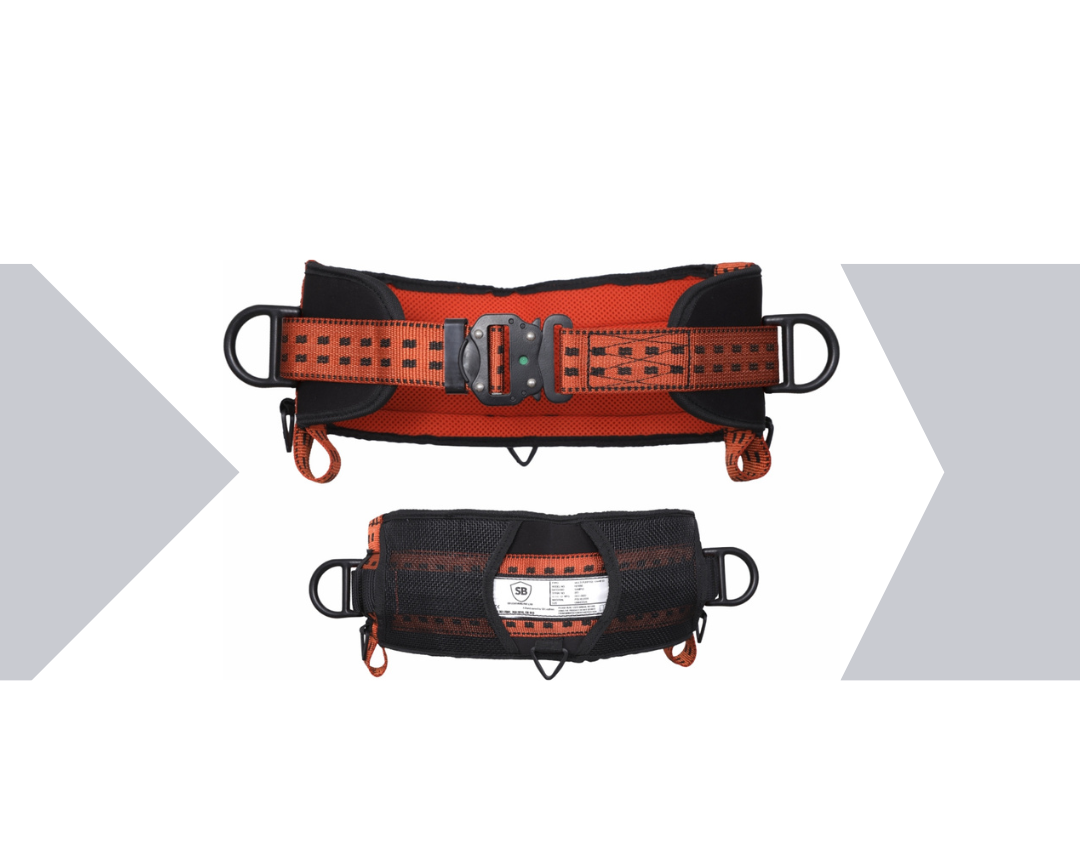

SBH103WPB
| Ref. No. | Special Features | Adjustability | Certified to |
|---|---|---|---|
| SBH101WPB | Alloy Steel with Zinc Plating Buckle and D-rings. Tool Pocket on back side. | Wide Comfort Pad, Fully Adjustable | EN 358:2018 |
| SBH102WPB | Powder Coated Aluminium D-rings & Combination Buckle. Moisture Wicking & Breathable Padding. | Two Lateral D-rings for Work Positioning. Tool holding Webbing Loops. | EN 358:2018 |
| SBH103WPB | Powder Coated Aluminium D-rings & Quick Connect Buckle. Breathable mesh net on back side. | Rings for Tool Holders, Bolt, Bags etc. Available in sizes- Medium, Large & Extra Large. | EN 358:2018 |

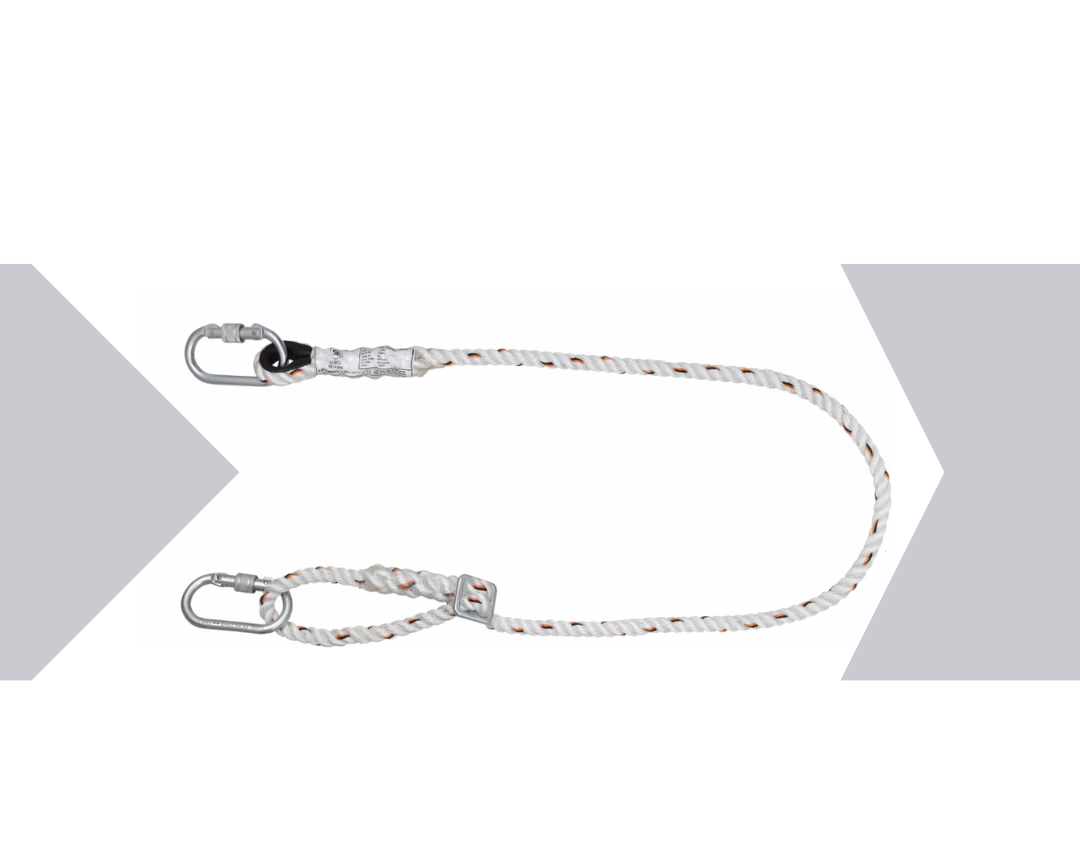

SBL241WPL

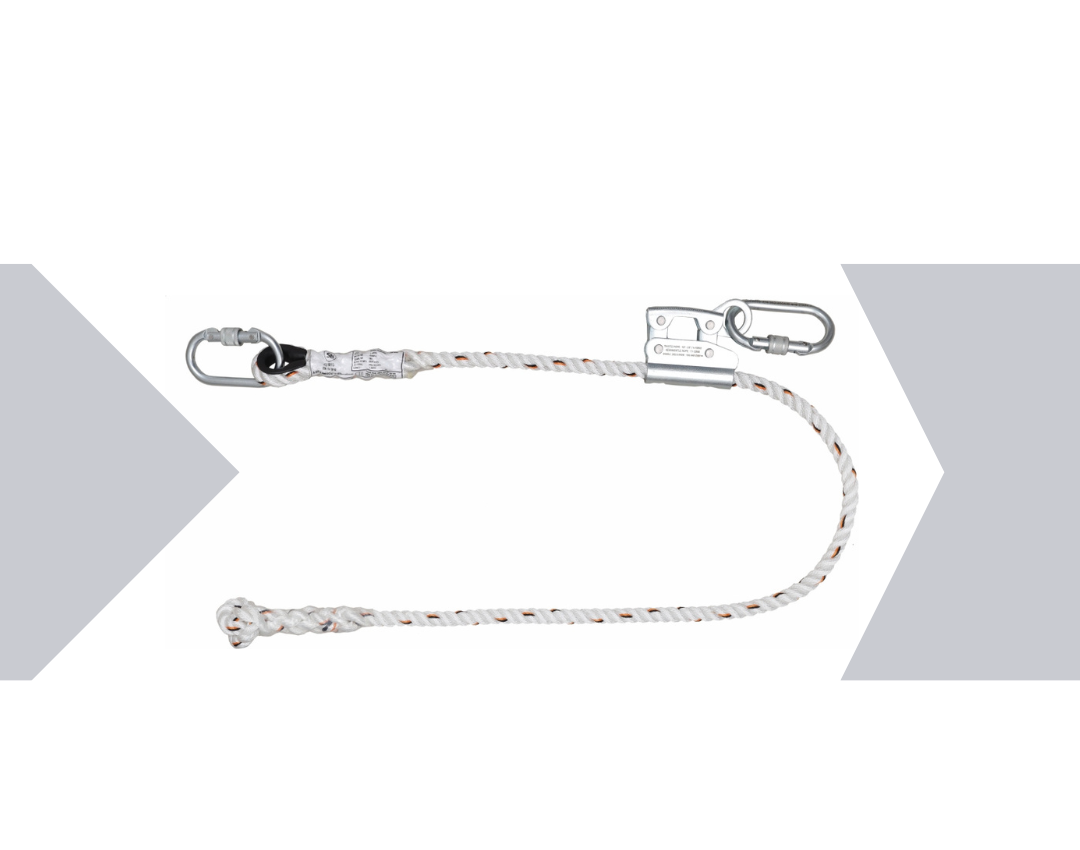

SBL242WPL

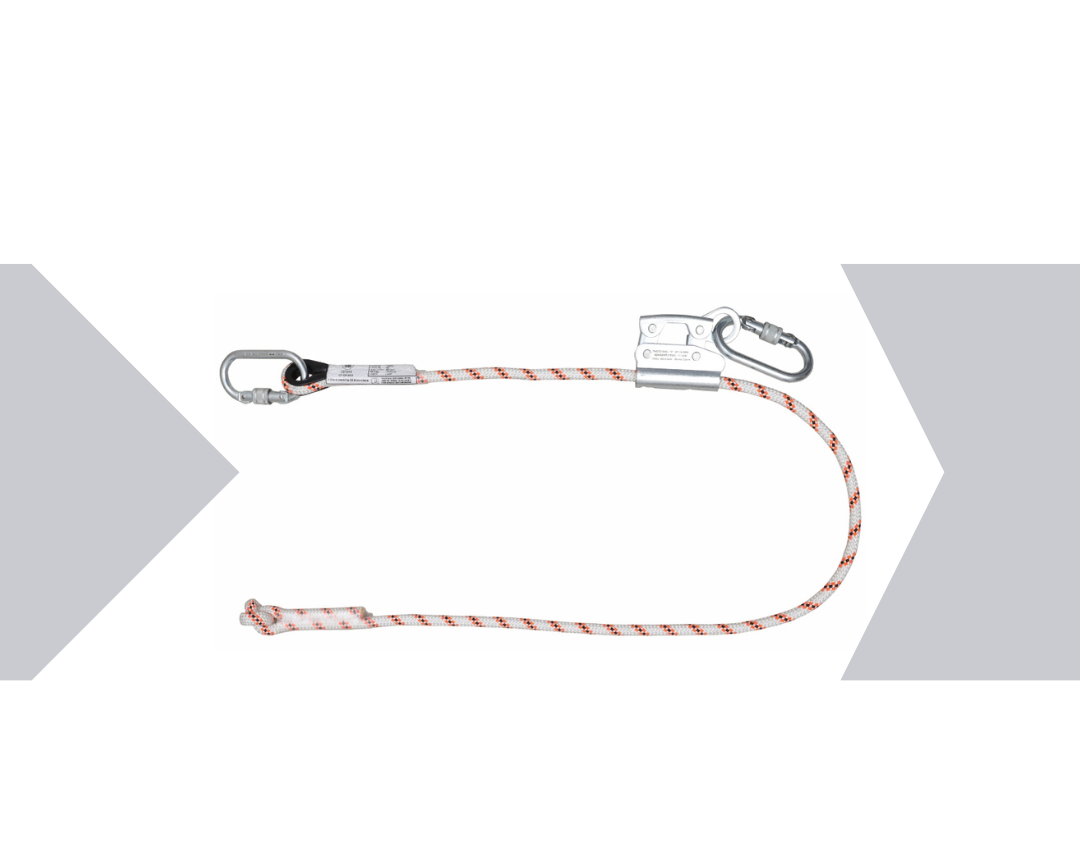

SBL243WPL

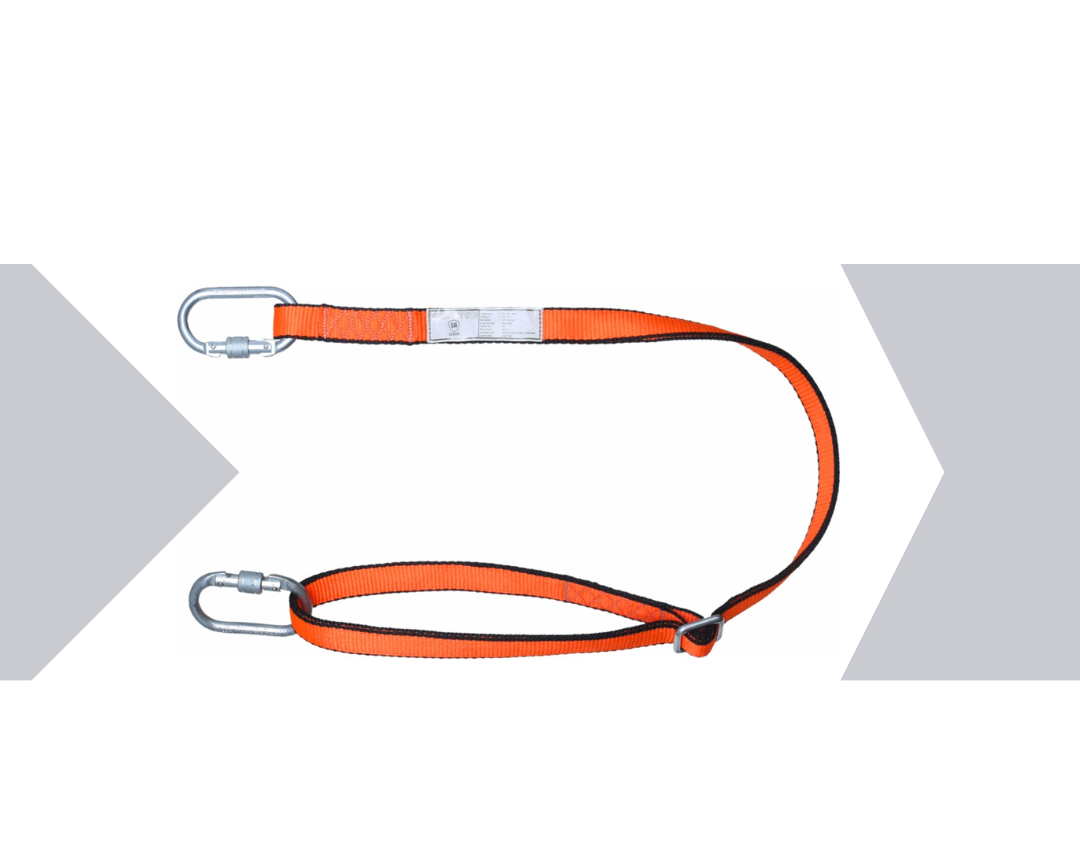

SBL244WPL
| Details | SBL241WPL | SBL242WPL | SBL243WPL | SBL244WPL |
|---|---|---|---|---|
| MATERIAL | Made of 12mm & 14mm dia Polyamide 3-strand Twisted Rope | Made of 12mm & 14mm dia Polyamide 3-strand Twisted Rope | Made of 12mm dia Polyamide Kernmantle Rope | Made of 30mm Polyester Webbing |
| LENGTH | 2.0 mtr., 3.0 mtr., & customized lengths are also available | 2.0 mtr., 3.0 mtr., & customized lengths are also available | 2.0 mtr., 3.0 mtr., & customized lengths are also available | 2.0 mtr., 3.0 mtr., & customized lengths are also available |
| ATTACHMENT ELEMENTS | Easy to connect Steel Karabiners at both the ends for attachment | Easy to connect Steel Karabiners at both the free ends for attachment | Easy to connect Steel Karabiners at both the free ends for attachment | Easy to connect Steel Karabiners at both the ends for attachment |
| ADJUSTMENT | Manual Ring-Type Adjuster for work positioning & length adjustment | Convenient Rope-Grab Adjuster for easy length adjustment & work positioning | Convenient Rope-Grab Adjuster for easy length adjustment & work positioning | Manual Ring-Type Adjuster for work positioning & length adjustment |
| CONFORMS TO | EN 358:2018 | EN 358:2018 | EN 358:2018 | EN 358:2018 |
| CUSTOMIZED | Can be customized as per requirements | Can be customized as per requirements | Can be customized as per requirements | Can be customized as per requirements |
